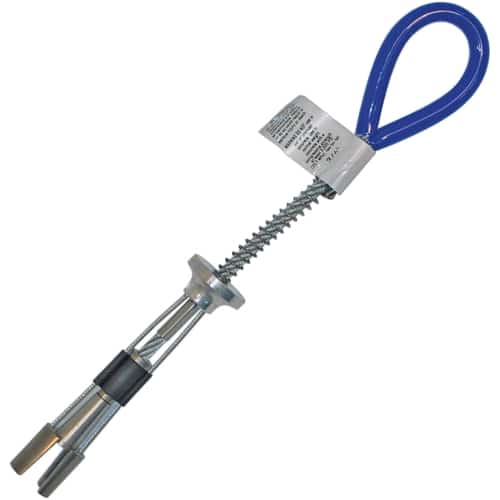

The Guardian Fall Protection “10K Concrete Anchorage Connector” is designed for use in 10″ thick cured concrete substrate with a compression strength of at least 3000 psi. The product is easy to install (just compress its spring and insert the cable shaft into the concrete hole). The connector is constructed of stainless steel, aluminum and other non-corrosive materials. This product is made for use on horizontal/vertical surfaces, overhead/ceiling surfaces, and horizontal/vertical lifelines. Applications for this product include fall protection, restraint, and work positioning. The anchor can fit a concrete hole size of 1 inch diameter and 4½” inches deep minimum. The product is designed for single user connection and has a maximum capacity of 400 pounds. The ultimate breaking strength for this product is 10,000 pounds.
Used in concrete substrate only
Applications include: fall protection, restraint, work positioning
Bright yellow tubing
Can fit a 1” hole diameter, 4½” deep minimum
