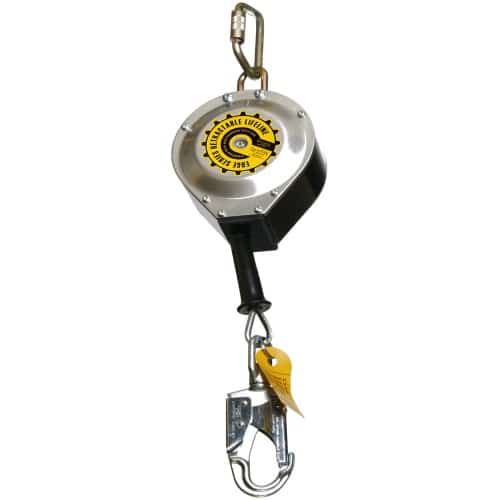

Galvanized Cable SRL is a type of self-retracting lifeline utilized in industrial and construction settings to protect workers from falls. This specialized equipment is constructed with a galvanized steel cable that is both durable and corrosion-resistant, ensuring long-lasting reliability in harsh working environments. With its self-retracting feature, the cable automatically retracts back into its housing, providing continuous fall protection while allowing for freedom of movement. The incorporation of a shock-absorbing element further enhances worker safety by reducing the impact of a fall. Overall, Galvanized Cable SRL is an essential piece of equipment in ensuring the safety and well-being of workers at height.

FEATURES:

• Compact and lightweight design
• Durable aluminum housing
• Stainless steel and non corrosive components extend the life of the unit
• Meets or exceeds all applicable industry standards including OSHA and ANSI
• Quick-action braking system
• Cost effective and priced competitively
• Comes with swivel top, carabiner and tag line
• Manufactured in the U.S.A.

Instructions
Data Sheet

SPECIFICATIONS

• Pawls: 304 Stainless Steel
• Reel Body: Aircraft machined aluminum
• Brake Ring: 304 Stainless Steel
• Brake Body: 304 Stainless Steel
• Anchorage Connection: Zinc plated alloy steel carabineer (5,000 min. tensile strength)
• Snap Hook: Zinc plated alloy steel snap hook (5,000 min. tensile strength)
• Housing: High strength aluminum
• Cable: 3/16 galvanized cable 3,600 tensile strength
• Weight: 19 lbs
• Capacity: 310 lbs or 400 lbs with attached shock pack
• Standards: Exceeds Z359.1-2007
• Max. Arresting Force: 900 lbs
• Max. Arresting Distance: 42”
• Average Locking Speed: 4½ ft/sec

Guardian Fall Protection customers,

As a result of Guardian’s continued manufacturing success with our Retractable Lifeline Division, Guardian is proud to announce that we will no longer require a mandatory two year recertification on any SRL manufactured after October 1st, 2009.

Consult all local applicable standards for fall protection equipment. As a general guideline, OSHA and ANSI do not require a mandatory recertification frequency. Guardian’s Policy requires that the unit shall be inspected before each use and at least once annually by a competent person. If this unit fails inspection then the SRL shall be sent to an authorized service center for inspection/maintenance.

Ed Marquardt,

Guardian Fall Protection
