Prices are subject to change.

MIRO 3-R-2 Pipestand

$16.95

Category:

Description

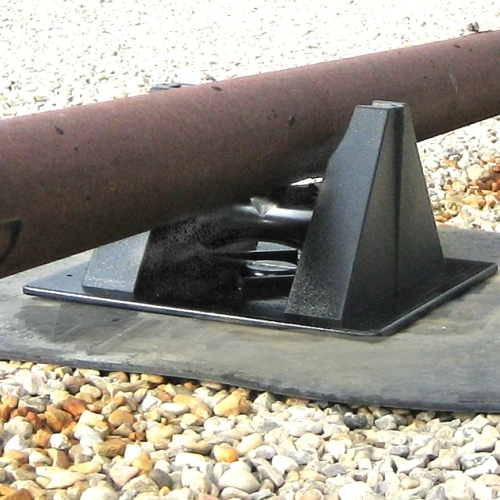

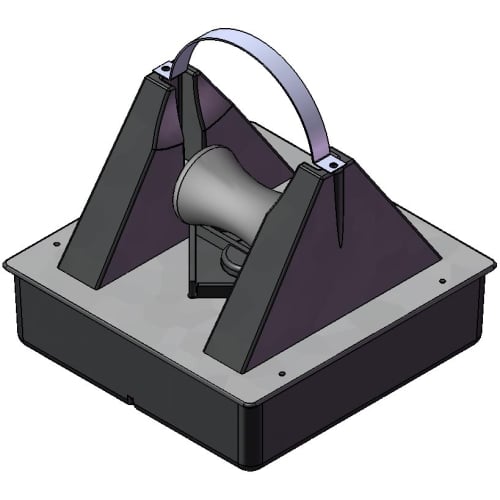

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a polycarbonate resin roller and a rod situated in a polycarbonate resin seat. Each pipestand will accommodate up to 3-3/4″ outside diameter pipes.

Specifications

Pipes Supported (1) Pipestand High Will Have a 2.15″ Clearance Above the Roof

  • Polycarbonate material, 7 3/4″ square base. Pipes rest on a resin roller and rod
  • Maximum pipe size 3″ I.D. and 3 3/4″ O.D.
  • Maximum load 79 lbs., spacing not to exceed 10 ft.
