Description

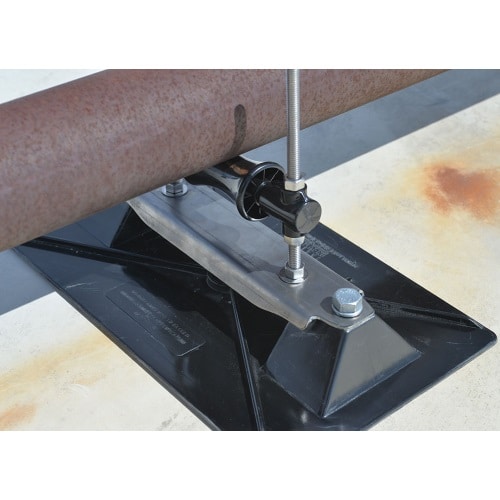

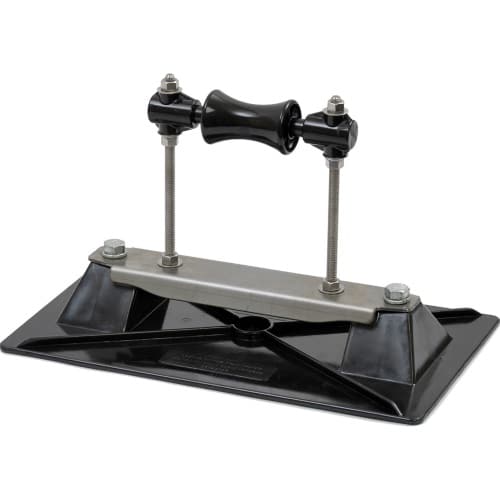

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 4″ pipe (inside diameter) or up to 4 1/2″ (outside diameter) pipes.
Specifications
Base Material: Polycarbonate, stainless steel or Hot Dip Galvanized
Size: Deck Base is 7-1/2 ” x 10″ and has a maximum cradle width of 4″
Max Pipe Size: 4″ Inside Diameter and 4-1/2″ Outside Diameter
Spacing: Manufacturer recommended spacing is not to exceed 10ft. centers depending upon the load
