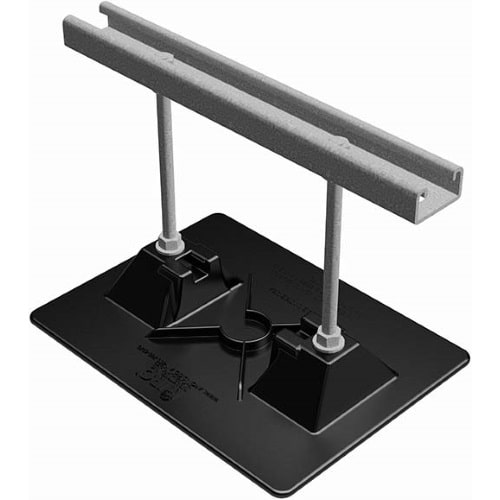

A pipe support with “Strut” is used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. It’s unique design absorbs thermal expansion and contraction of pipe while preventing damage to the roof membrane. The pipe will rest on a 12 in. strut which is mounted to the base, and can be fastened by using the appropriate pipe clamp
*Pipestand will accommodate up to 2-1/2” pipe (inside diameter) or up to 3” (outside diameter) pipes*
Base Material: Polycarbonate
Size: The deck base is 7.5? by 10? and the strut is 1 5/8? by 13/16? strut and 12? long.
Max Pipe Size: 2.5? inside diameter and 3? outside diameter.
Max Pipe Clearance: 2.5-Conduit Support-2 has a maximum pipe clearance of 2.5?.
Adjustable Height: From 3-1/2 to 7″, even load required
Max Load Weight: Maximum load weight may not exceed 115 lbs. per pipestand.
Spacing: Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
