MIRO Model 5-RAH-12 Pipestand

$77.00

Category:

Description

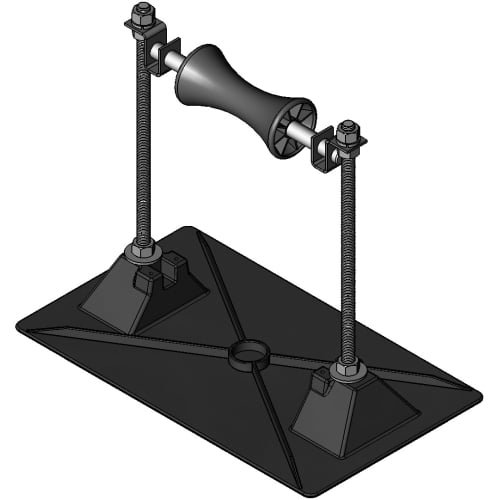

The 5-RAH-12 has Replaced the 4-RAH-12 / A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a sturdy polycarbonate resin roller. The pipe support base is made of polycarbonate plastic and all metal parts are made of stainless steel. Pipestand will accommodate up to 5″ (inside diameter) and up to 6″ outside diameter pipes.

Specifications

Can Adjust in Height From 2 3/4″ to 12″ in Elevation Above the Roof

  • Polycarbonate material, 9″ x 15 1/4″ base. Pipes rest on a self-lubricating, polycarbonate resin roller and rod
  • All metal parts are stainless steel
  • Maximum pipe size 5″ I.D. and 6″ O.D.
  • Maximum load 223 lbs., spacing not to exceed 10 ft.
