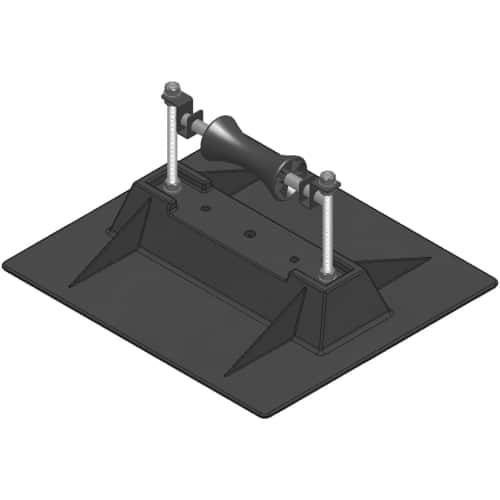

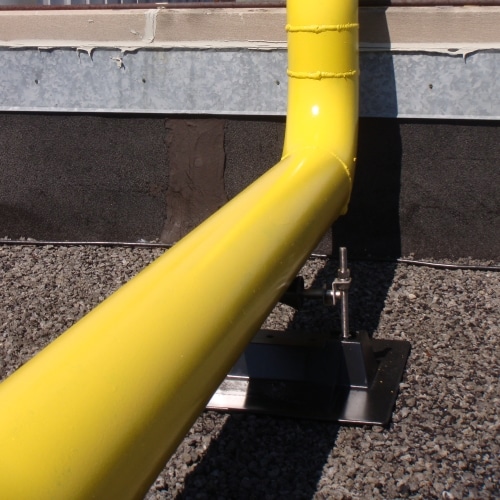

A “roller bearing” pipe support used to support roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is a 304 stainless steel rod and a polycarbonate resin roller. The pipe support base is made of sturdy polycarbonate resin, the roller is polycarbonate and all metal parts are made of stainless steel. Pipestand will accommodate up to 6″ inside diameter pipe or up to 8.5″ outside diameter pipes.
Can Adjust in Height From 4″ to 7″ in Elevation Above the Roof
Polycarbonate material, 16″ x 18″ base. Pipes rest on a self-lubricating, polycarbonate resin roller and rod
All metal parts are stainless steel
Maximum pipe size 6″ I.D. and 8 1/2″ O.D.
Maximum load 440 lbs., spacing not to exceed 10 ft.
