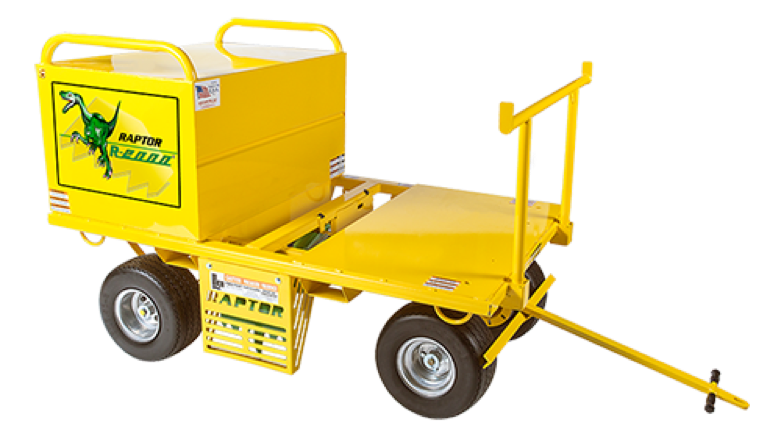

The R2000™ maintains the same safety features of the popular Tri-Rex^TM with a lighter weight for when the situation warrants. The R2000™ mobile anchor cart allows for mobile and versatile fall protection for 2 person fall arrest and 2 person fall restraint. The R2000™ meets and exceeds OSHA 1926.502(D).

Dimensions

Width: 48″W
Height: 63″
Weight: 850lbs (base model)
Tires: Solid Polyurethane 18×8.5×8 flat free tires, needle bearings, with grease zerks
Platform Size: 78″ x 47″
Platform Height: 24″
Ground Clearance: 5-1/2″
Warranty: Manufacturers limited warranty covers any defect in workmanship or materials
Standard Job Box: 47.5″ wide x 24″ tall x 30″ deep
Weight: 125 lbs.
Materials: 16 gauge solid steel construction, powder coated

Approved Surfaces
BUILT-UP ROOFING (BUR)2
THERMOPLASTIC POLYOLEFIN (TPO)2
POLYVINYL CHLORIDE (PVC)2
BUILT-UP ROOFING (BUR) AND GRAVEL2
ROOF COATINGS 2
MODIFIED BITUMEN2
ETHYLENE PROPYLENE DIENE MONOMER (EPDM)2
BALLASTED SINGLE-PLY MEMBRANES2
INVERTED ROOF MEMBRANE ASSEMBLY (IRMA)4
PLYWOOD
DENSDECK® 3,6
POLYISOCYANURATE (ISO)1,4
EXTRUDED POLYSTYRENE (XPS)1,4
INSULATING LIGHTWEIGHT CONCRETE
HIGH DENSITY FIBERBOARD1,4
GYPSUM BOARD1,4
EXPANDED POLYSTYRENE (EPS)1,4
SPRAY-APPLIED POLYURETHANE 1,4
METAL DECK (22GA AND 20GA)
STRUCTURAL LIGHTWEIGHT CONCRETE
TOPSOIL—COMPACTED
ASPHALT PAVEMENT
PANELIZED SLAB FORMWORK5,6
METAL DECK (18GA4)
CONCRETE DECK (4000-6000PSI)
GYPSUM DECK
GRAVEL—COMPACTED
FLAT SURFACES AND UP TO 2:12 SLOPE.
WHEN MECHANICALLY FASTENED OR ADHERED TO AN APPROVED SUBSTRATE.
WHEN USED AS PART OF A COMPLETE ROOF ASSEMBLY.
SUBSTRATE IS ALLOWABLE WHEN COVERED WITH 3/4” PLYWOOD SECURED WITH A MINIMUM OF EIGHT (8) FASTENERS. FIG 1-2
WHEN TOTAL INSULATION THICKNESS IS GREATER THAN 3.875” OR USED WITH AN APPROVED METAL DECK. FIG 1-1
FALL RESTRAINT ONLY– MAXIMUM 2 USERS
UTILIZE ATTACHMENT POINT RESTRICTOR PLATES TO ELIMINATE OR LIMIT THE NUMBER OF USERS IN FALL ARREST
DensDeck® is a registered trademark of Georgia-Pacific Gypsum, LLC.
