Our Products Details

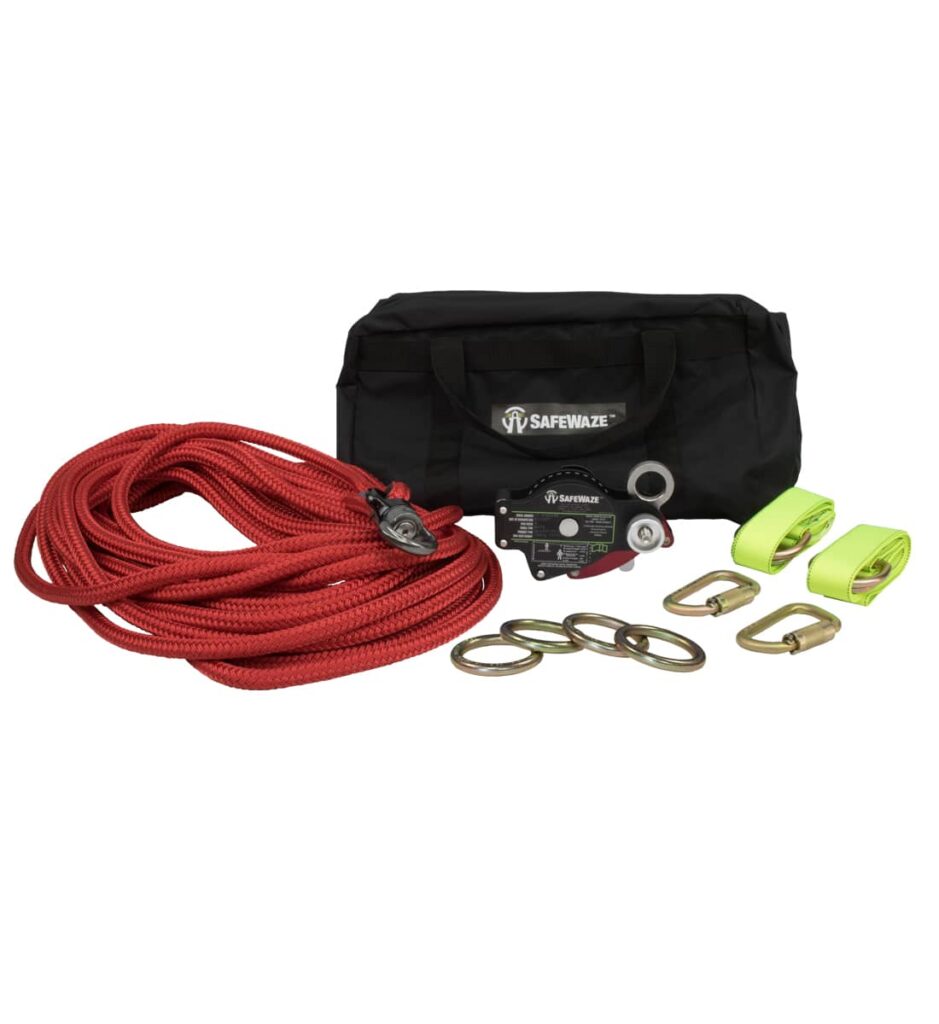

The 019-8012 4 Person Rope Horizontal Lifeline Kit comes with a 30? 16 mm double braid rope with 4 o-rings, 2 heavy-duty cross arm straps, rope tensioner, and 2 carabiners. The swivel connection point keeps the rope from twisting while in use and the tensioner comes with a wrench that is easily attached and stored within the unit. All of the kit components fit in the convenient carrying and storage bag. Additional rope length options are available to cover multiple applications.

The 4 Person Rope Horizontal Lifeline Kit with Cross Arm Straps is a crucial tool for ensuring worker safety in environments where there is a risk of falling from heights. This kit is designed to provide a secure anchor point for up to four workers, allowing them to move freely while remaining connected to the lifeline. The inclusion of cross arm straps ensures that the lifeline is anchored securely to a structural beam or other overhead support, providing added stability and support. By using this kit, employers can ensure compliance with safety regulations and mitigate the risk of accidents and injuries in the workplace.

Furthermore, the 4 Person Rope Horizontal Lifeline Kit with Cross Arm Straps is easy to install and can be quickly set up in a variety of work environments. The kit is highly customizable, allowing for adjustments to be made to accommodate different workspaces and configurations. Its durable construction and high-quality materials make it a reliable and long-lasting solution for ensuring worker safety. Overall, this lifeline kit is an essential tool for any employer looking to prioritize the safety and well-being of their workers in environments where working at heights is a frequent occurrence.

Options:
019-8013 – 60’ Rope
019-8014 – 80’ Rope (kit comes with 2nd energy absorber)
019-8015 – 100’ Rope (kit comes with 2nd energy absorber)

Specifications
Attachment Point(s)
2 Carabiners (structural), 4 O-rings (User)
Materials
Rope – 16 mm Double Braid (16-plait cover and 8-plait core) Tensioner – Steel, Aluminum O-rings – Forged Steel 1.75” Green polyester cross-arm strap webbing— Tensile strength > 9,500 lbs Polyester thread Carabiner tensile strength > 5,000 lbs; gate rated at > 3,600 lbs Steel Swivel Eye, rated at 5,000 lbs
Weight Capacity
310 lbs/person 2-person maximum 220 lbs/person 4-person maximum
Applicable Standards
OSHA 1910/1926.502 – ANSI Z359.1 – ANSI A10.32
