Removable concrete wedge anchors are a vital component in construction projects where a temporary anchoring solution is required. These anchors are designed to be easily installed and removed without causing damage to the concrete surface. The wedge anchor consists of a threaded stud with a wedged end that is inserted into a pre-drilled hole in the concrete. Once the anchor is installed, the wedge is expanded to create a tight grip within the hole, providing a secure attachment point for various applications such as scaffolding, temporary fencing, and equipment tie-downs.

One of the key advantages of using removable concrete wedge anchors is their versatility and ease of use. These anchors can be quickly installed and removed, saving valuable time and labor costs on construction sites. Additionally, the ability to remove the anchor without leaving behind any visible damage makes them a popular choice for temporary installations. Furthermore, removable wedge anchors are available in a variety of sizes and load capacities, making them suitable for a wide range of applications. Overall, the convenience, versatility, and damage-free installation make removable concrete wedge anchors an indispensable tool for construction projects requiring temporary anchoring solutions.

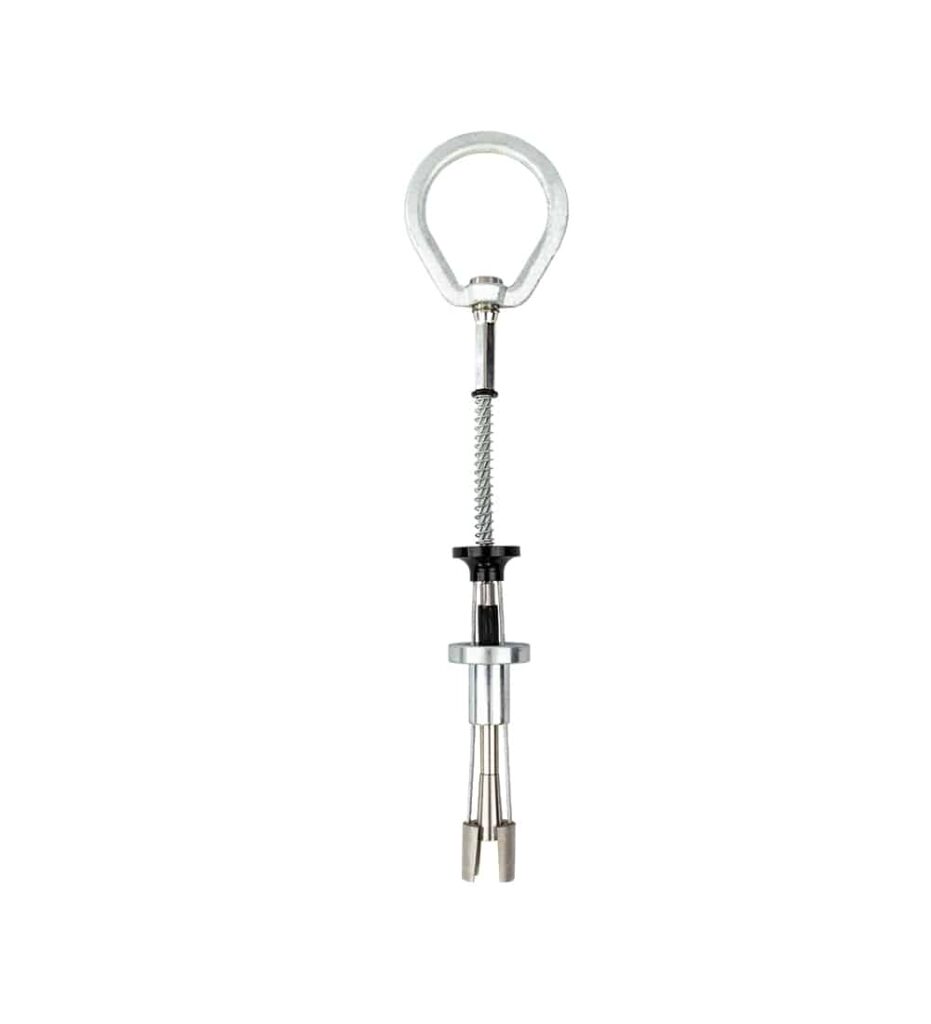

Made of high quality, high strength steel, and aluminum, this 5k concrete wedge anchor is easily installed and removed into the concrete. The anchor is lightweight and can be used in horizontal, vertical, and overhead applications and fits in a 3/4? hole.

Features
Removable and Reusable
Fits in 3/4” (19mm) Concrete Hole
Can be used vertically, horizontally, and overhead
Made of high strength steel and aluminum
Swivel D-ring tie-Off
Ergonomic quick release for easy installation and removal

Specifications
Materials
Aircraft Cable – Main Cable, Return Wire; Stainless Steel – Spoons, Stop Sleeve, Cone, End Termination; Aluminum – Trigger; Zinc Plated Steel – Spring, Hole Plug, Anchor Loop
Weight
.44 lbs (200 g)
Weight Capacity/Max Working Load
310 lbs (140.61 kg) – Single user
Length
12.75 in (323.8 mm)
Diameter
.75 in (19 mm)
Minimum Breaking Load
5,000 lbs – 22 kN
Applicable Standards
Meets OSHA 1926.502 – OSHA 1910.66 – ANSI Z359.18 Type T
