Description

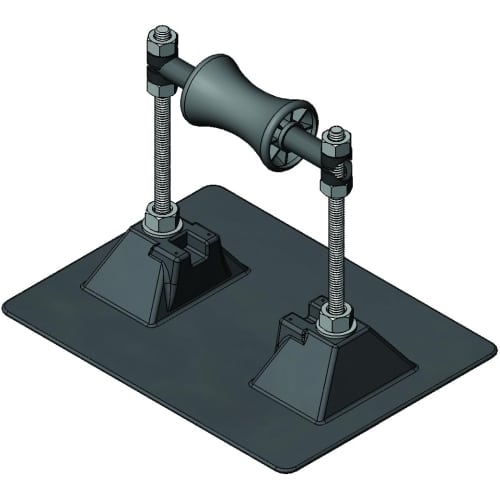

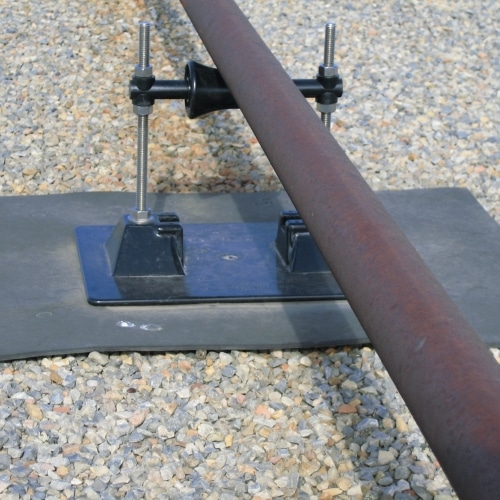

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 3″ pipe (inside diameter) or up to 3 3/4″ (outside diameter) pipes.
Specifications
Can Adjust in Height From 2 3/4″ to 7″ in Elevation Above the Roof
Polycarbonate material, 7 1/2″ x 10″ base. Pipes rest on a self-lubricating, polycarbonate resin roller and rod
All metal parts are stainless steel
Maximum pipe size 3″ I.D. and 3 3/4″ O.D.
Maximum load 100 lbs., spacing not to exceed 10 ft.
