Description

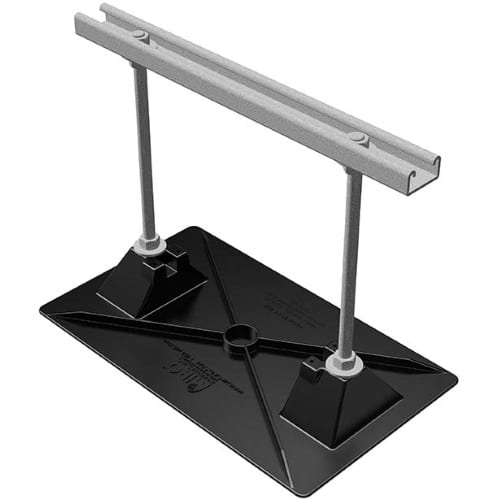

A pipestand with a strut and clamp pipe support system used for ganging roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a 16 in. length of strut which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut.
Specifications
Base Material: Polycarbonate
Size: Deck Base is 9 in. x 15.25 in., has a max bar length of 16 in.
Max Pipe Clearance: Can adjust in height from a low of 2.5 in. to a high of 12 in. in elevation above the roof membrane
Max Load Weight: Max load weight may not exceed 223 lbs. per pipe stand
Spacing: Manufacturers recommended spacing is not to exceed 10 ft. centers depending upon the load
